| Product Attribute | Attribute Value |
|---|---|
| Body Style | Disc |
| Current Rating | 15 A |
| Current, Switching | 15 A |
| Dimensions | 1.23" L x 1.32" W x 0.37" H |
| Function | Thermostat |
| Maximum Operating Temperature | 63 °C |
| Measurement Range | 63 degC |
| Minimum Operating Temperature | 57 °C |
| Mounting Style | Snap Action |
| Output | NC |
| Sensing Mode | Open on Rise |
| Series | |
| Standards | UL Listed and CSA Certified, VDE Approved |
| Supply Voltage | 120/240 VAC |
| Technology | Thermal Conductive |
| Termination | QC Tabs |
| Thermostat Type | Disc |
| Type | Thermostat |
| Voltage, Switching | 240 VAC |
Overview

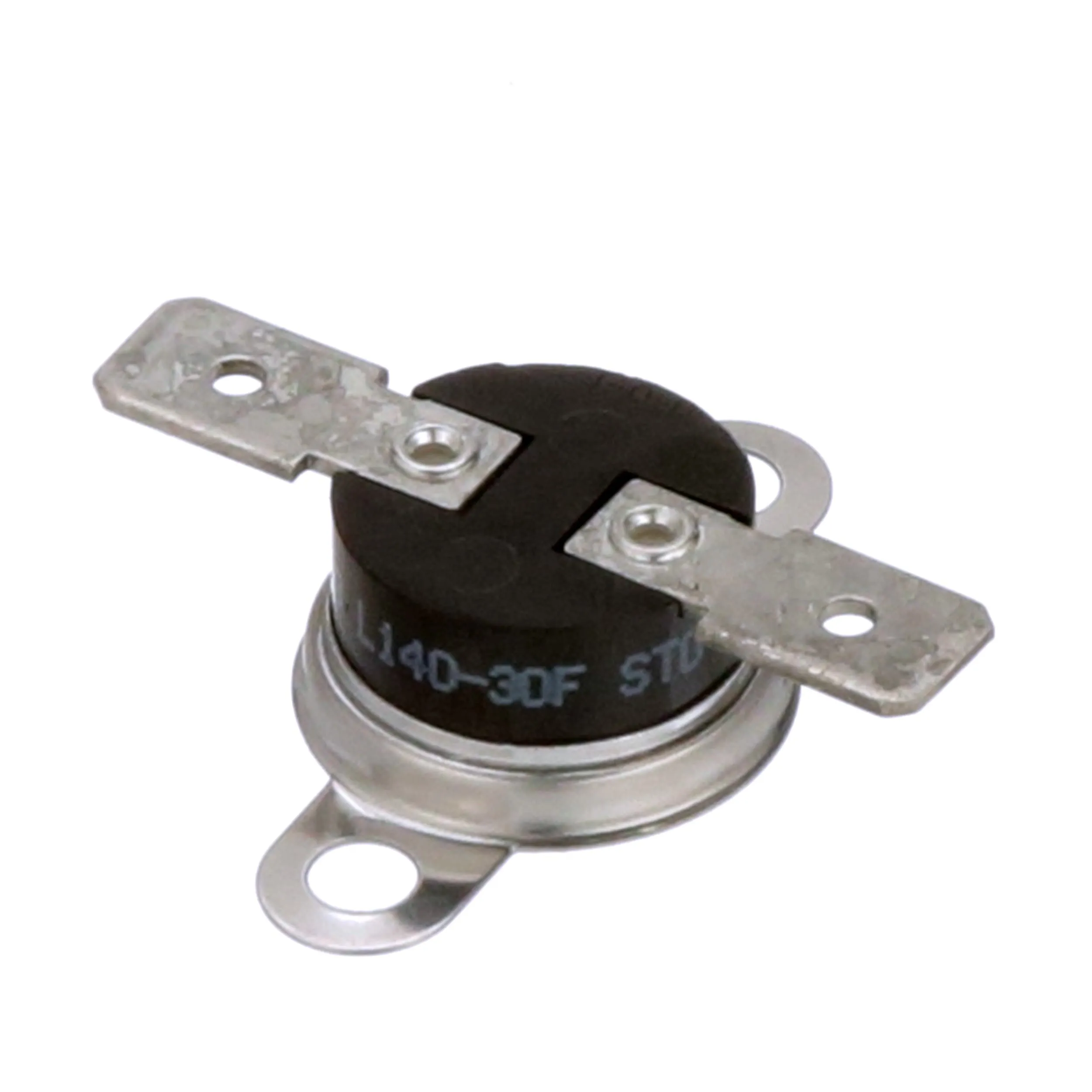

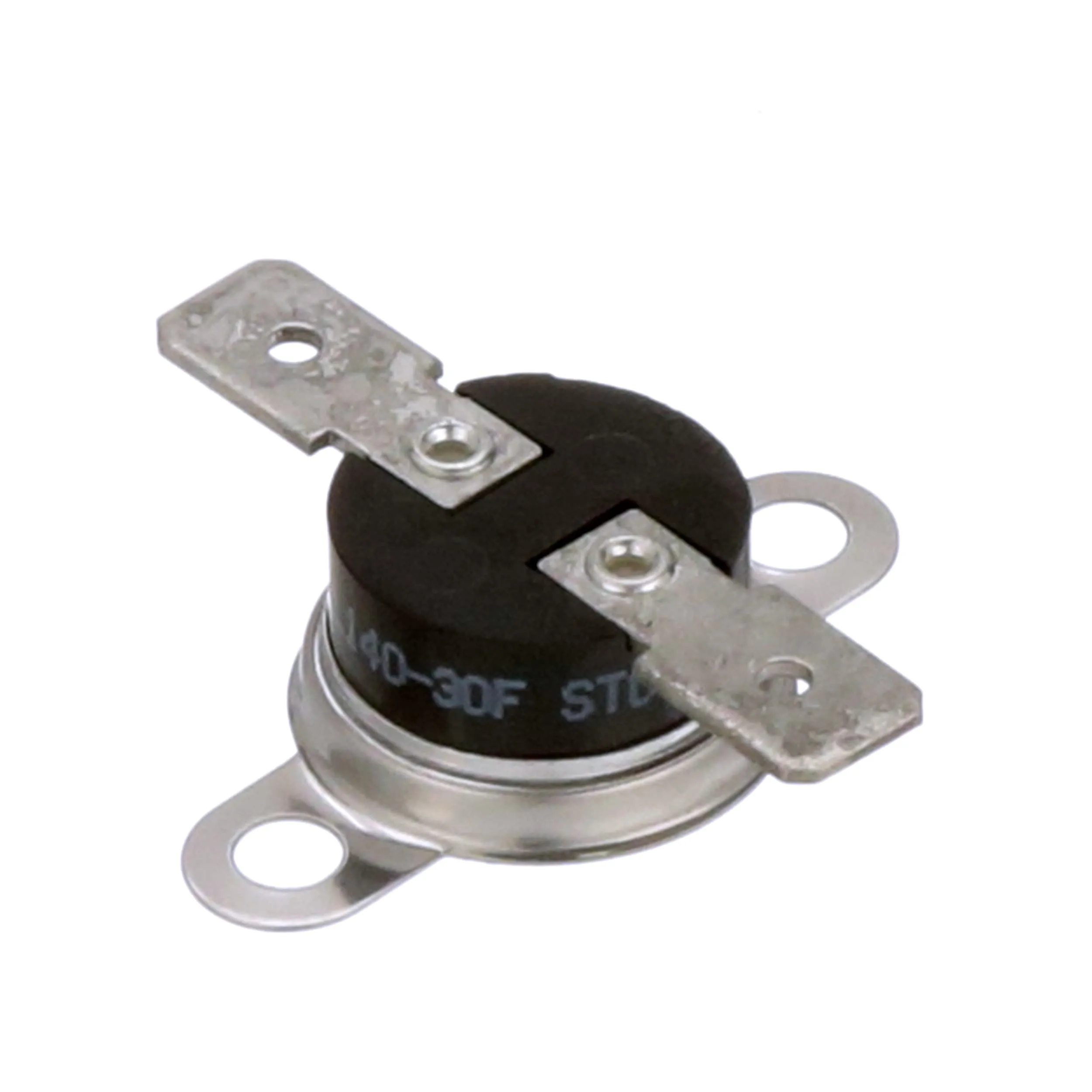

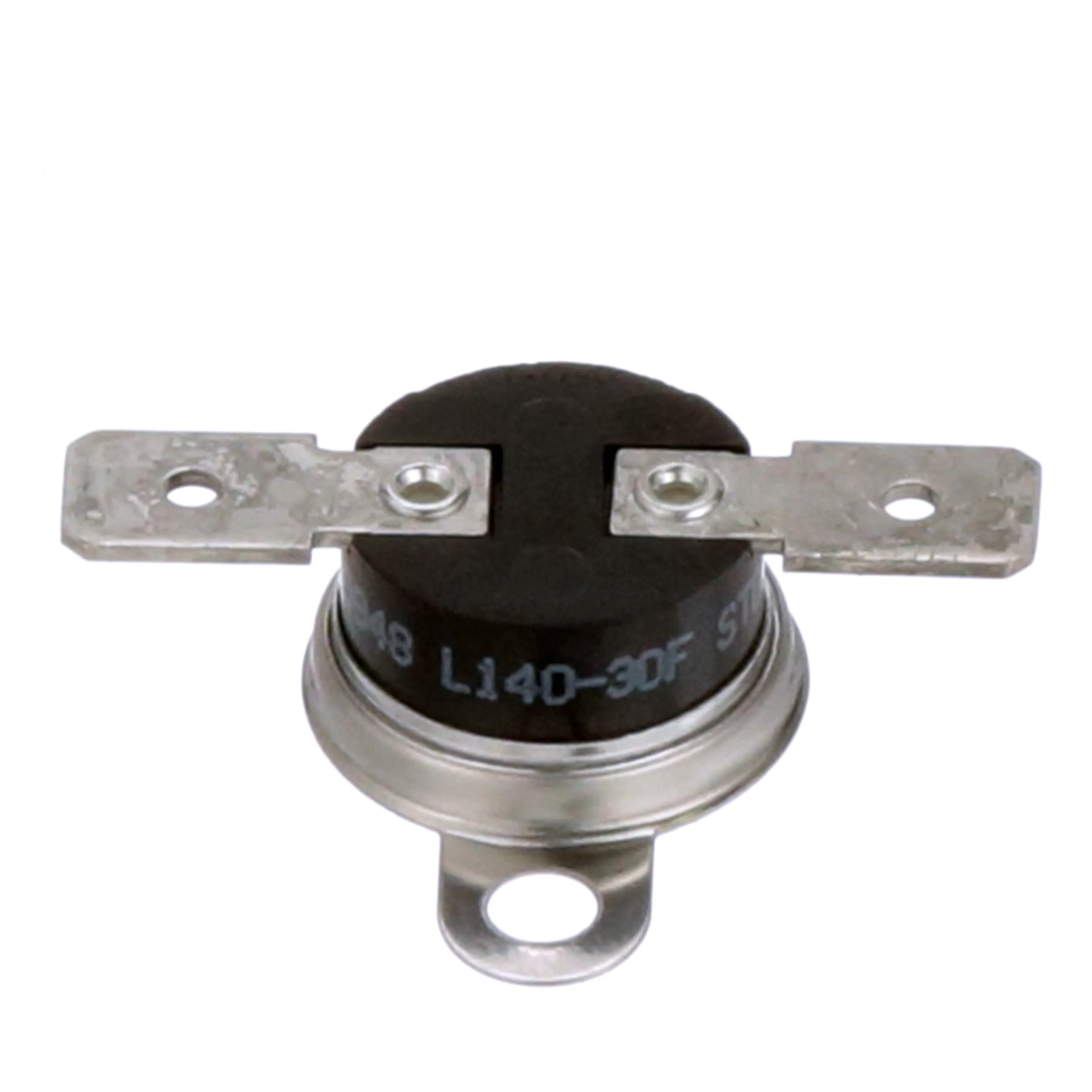

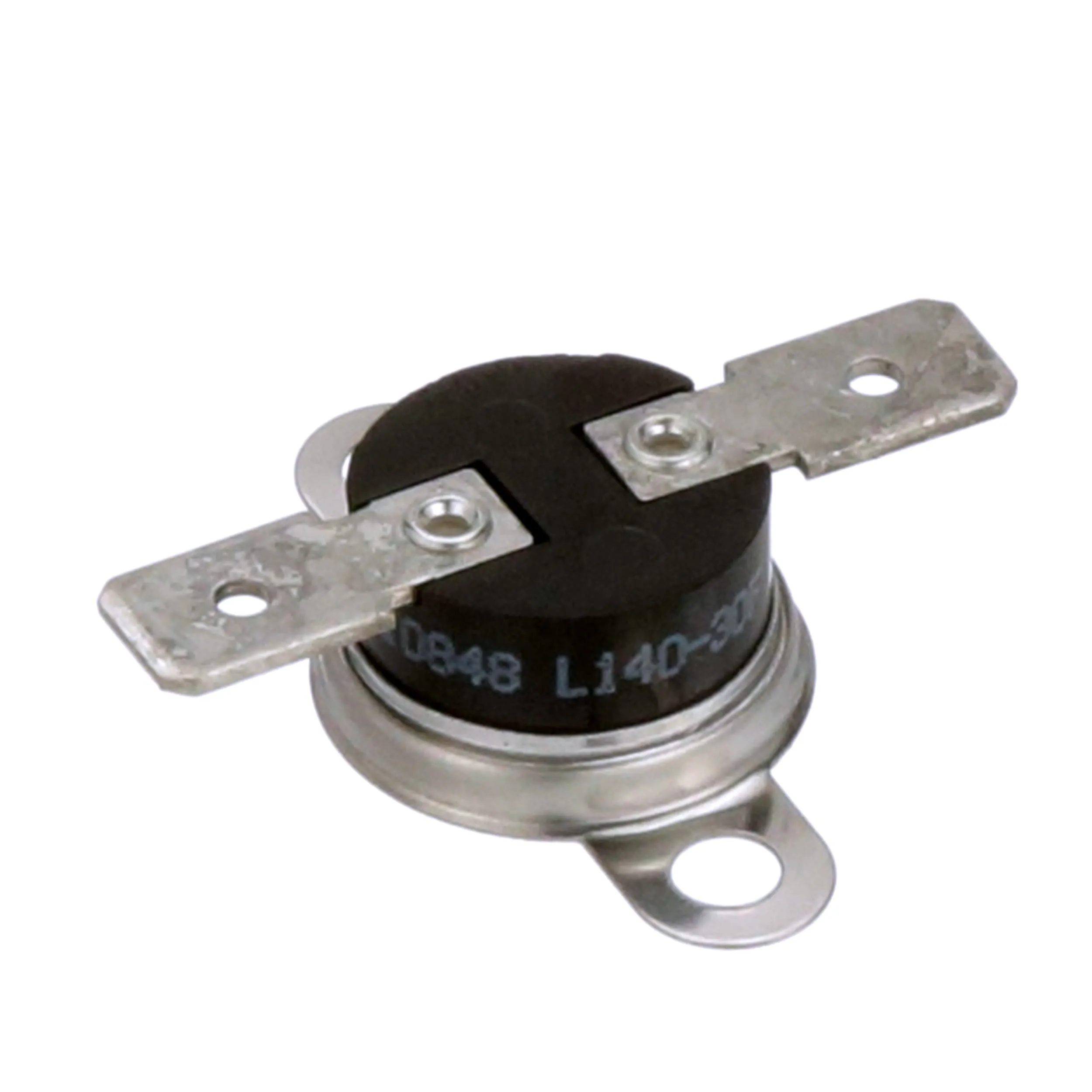

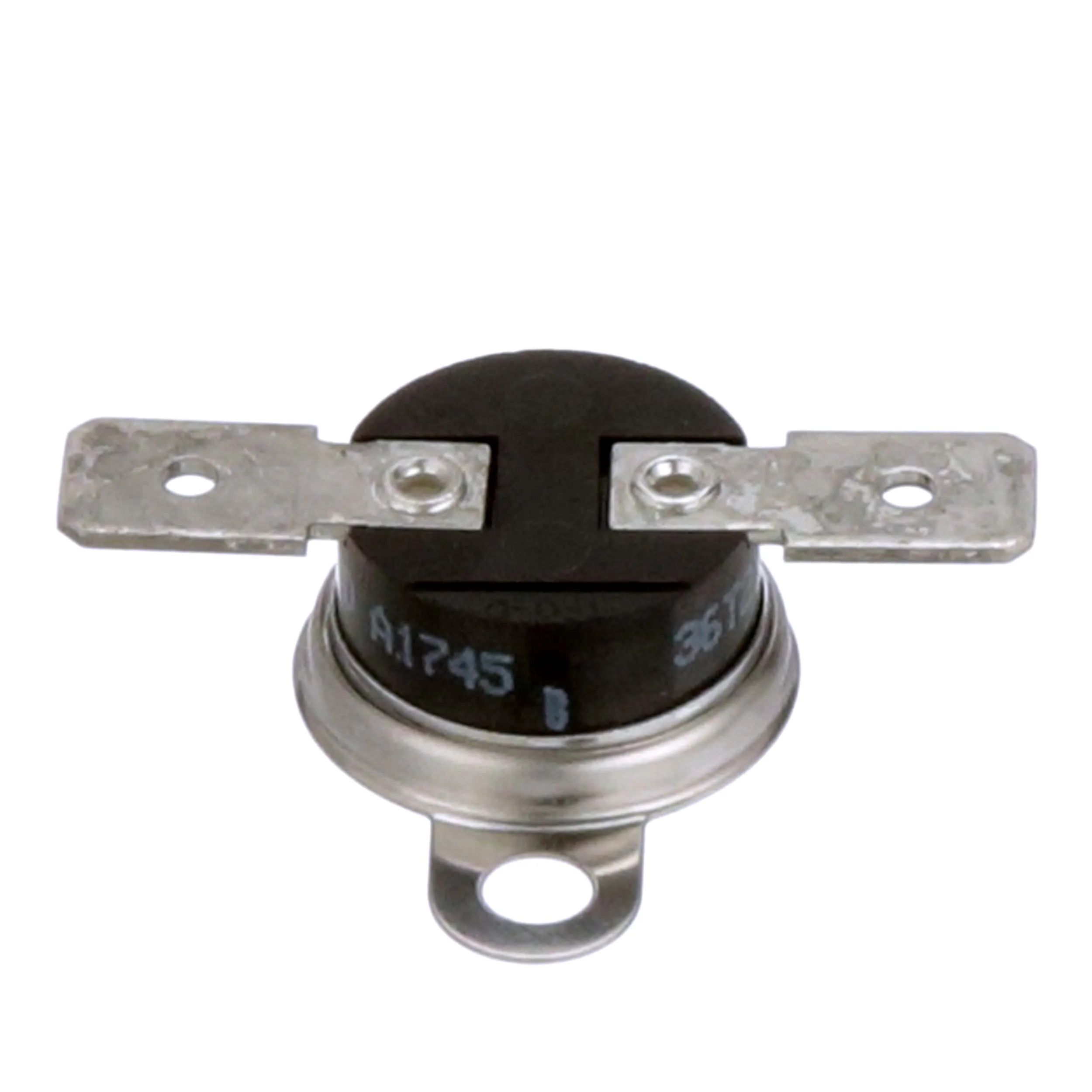

Adjustable Snap Disc Thermostat allows you to set the temperature setpoint to match your specific needs, simplifying inventory.
Features:
