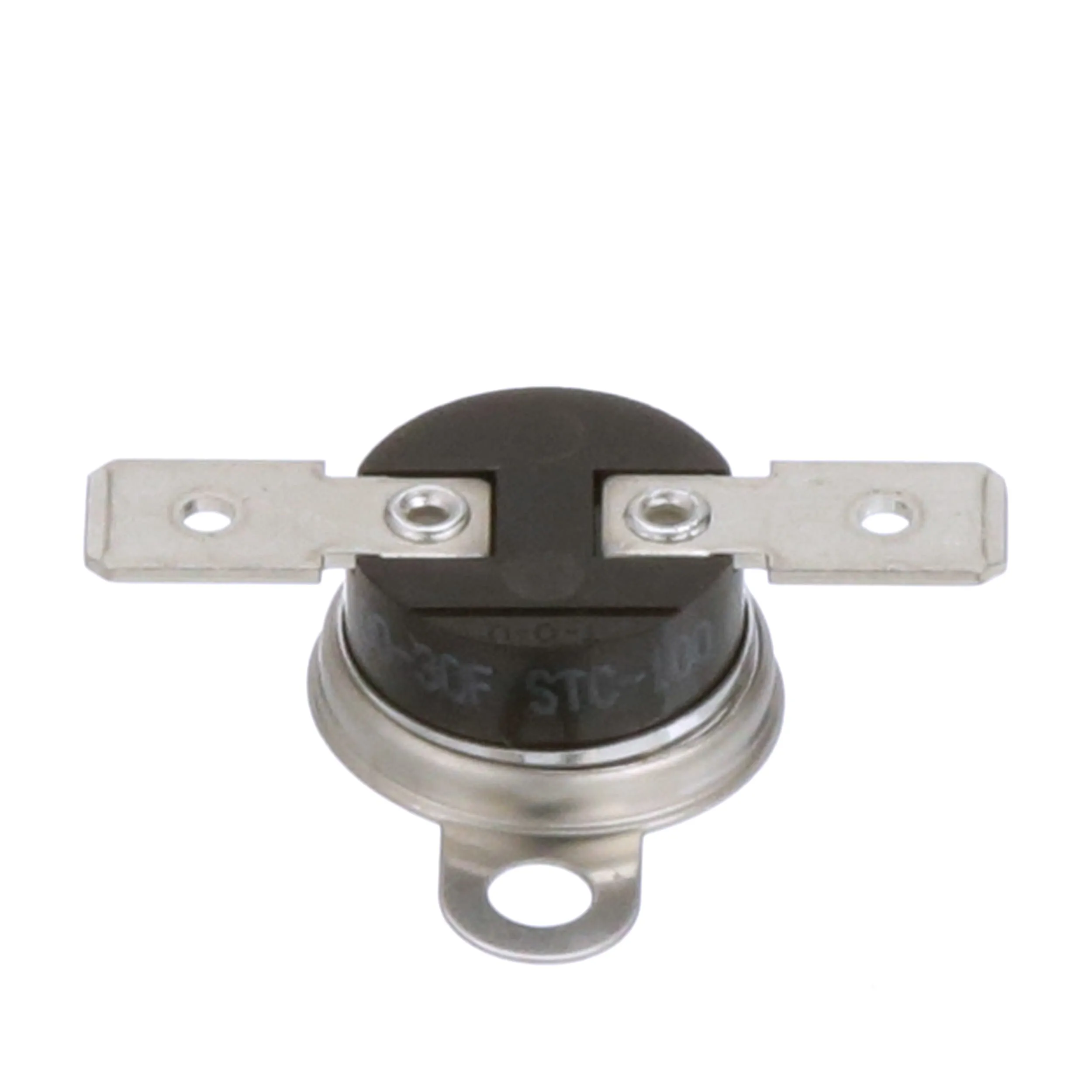

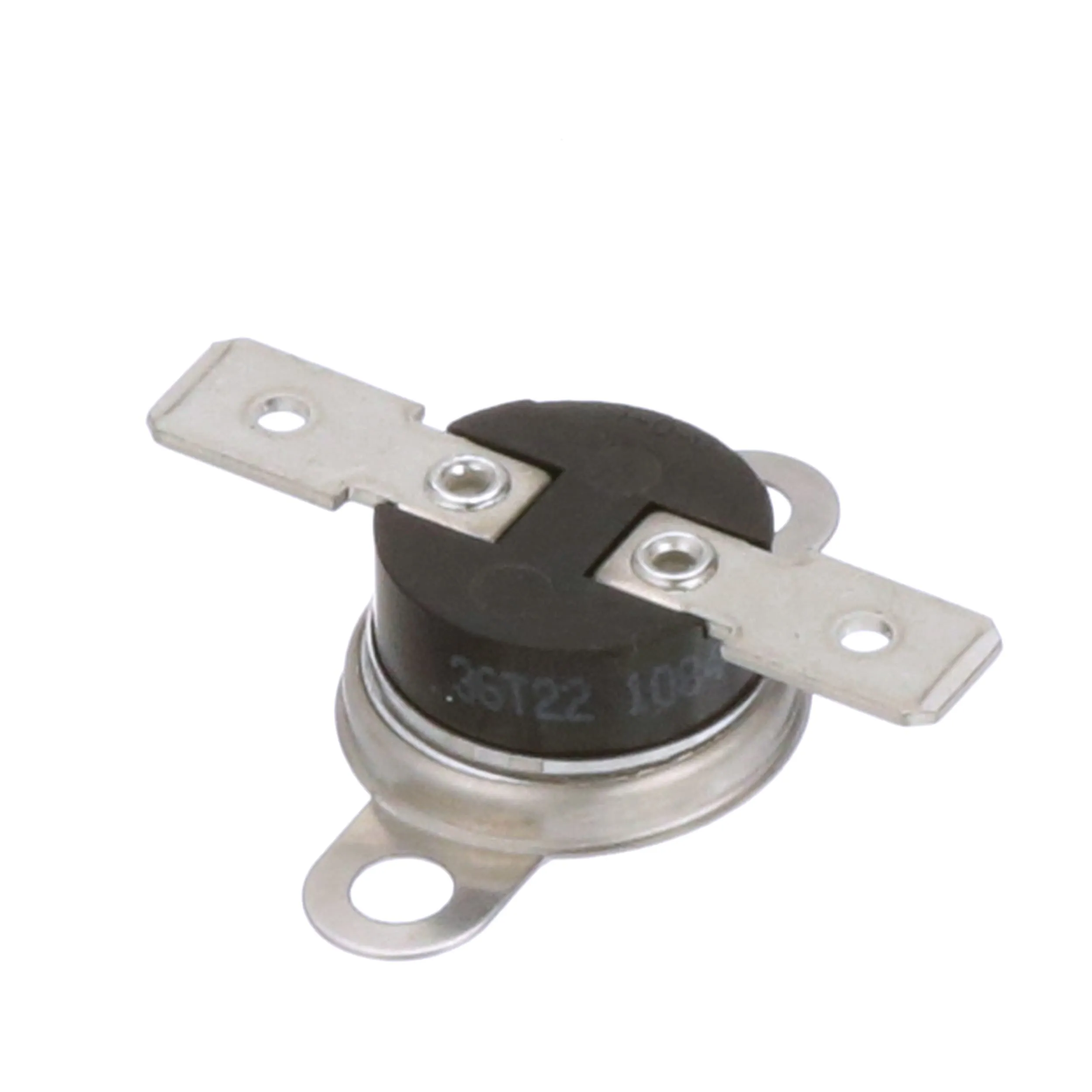

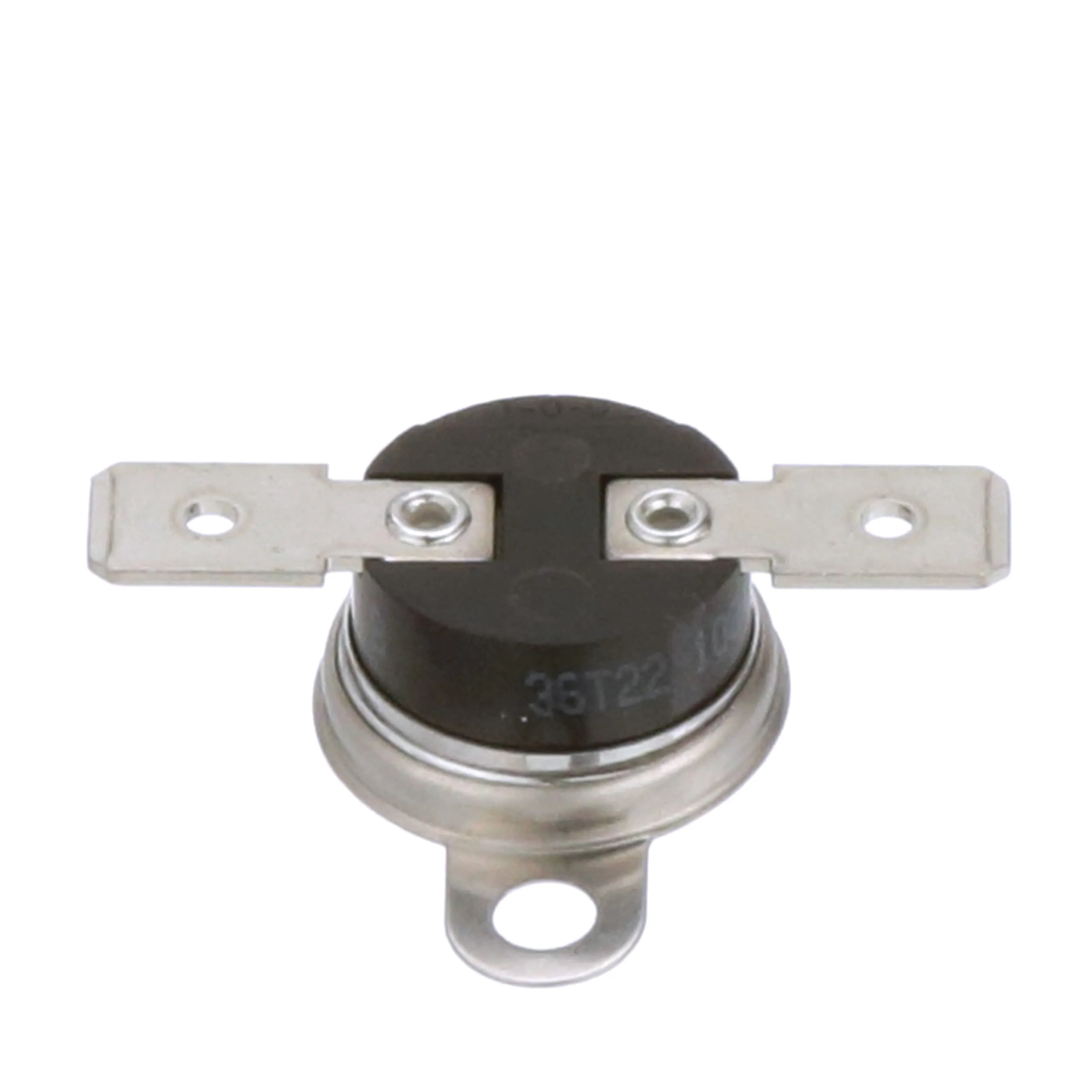

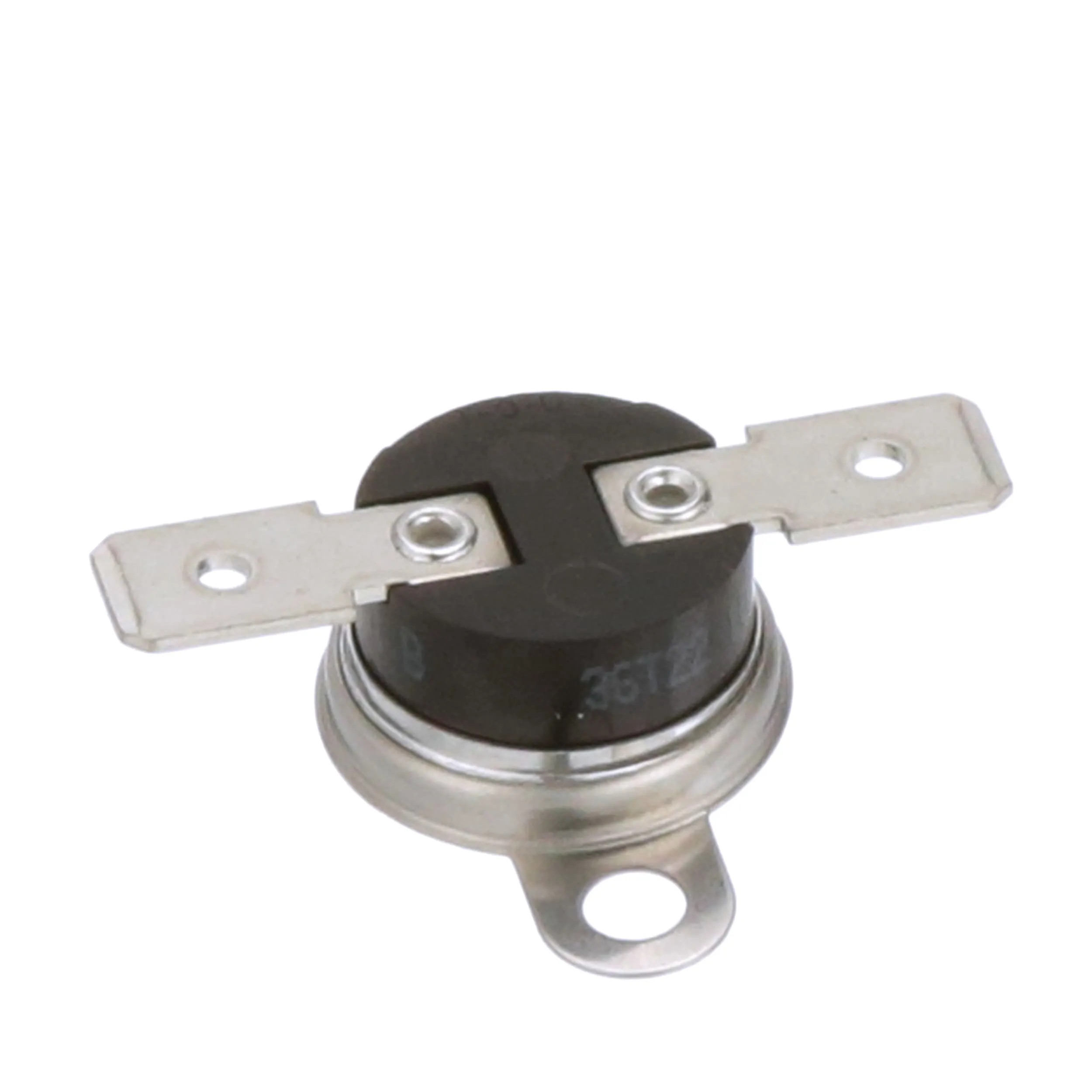

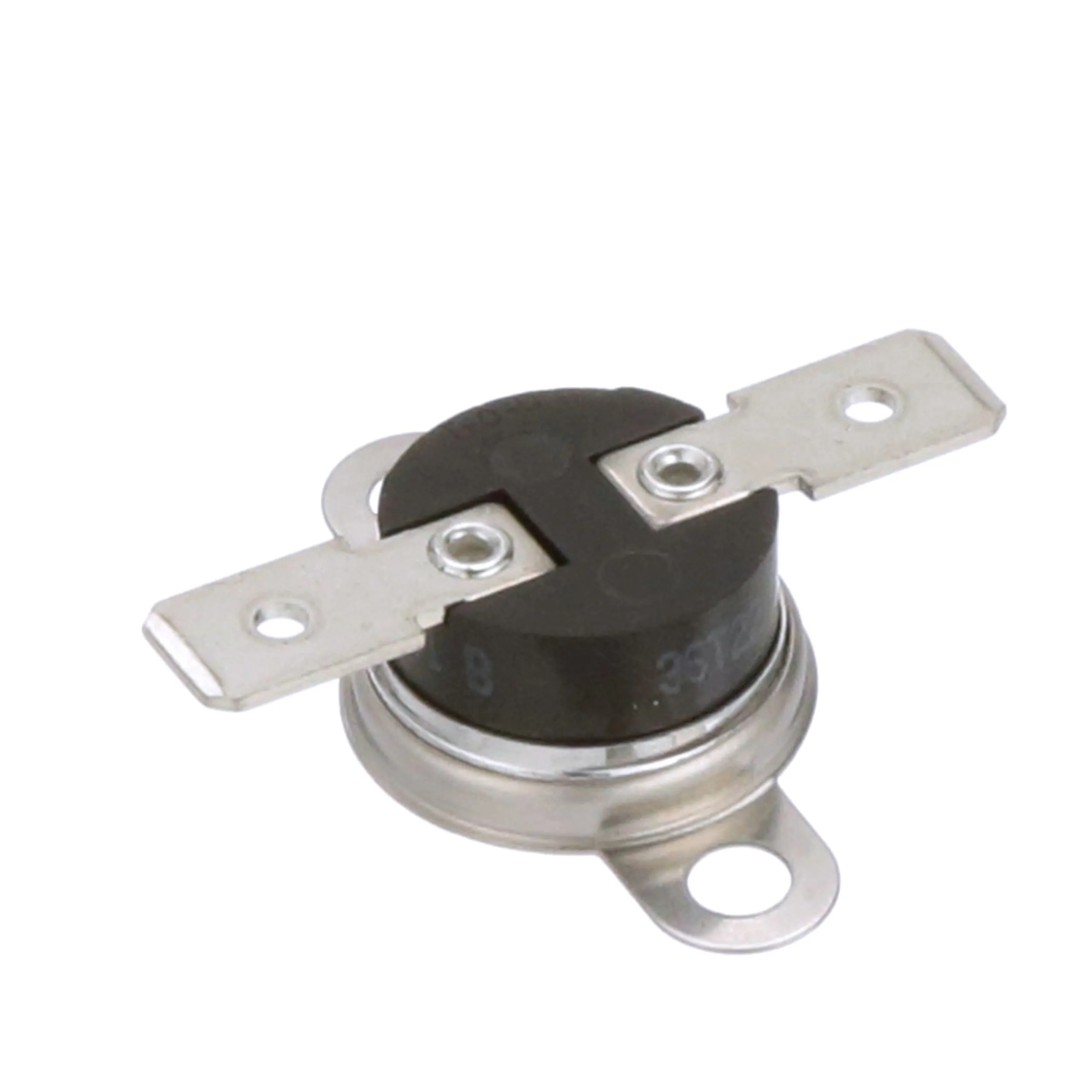

Name: White-Rodgers 3F11-100
SKU: 380056

Product Attribute	Attribute Value
Body Style	1/2 in. Disc
Current Rating	15 A
Current, Switching	15 A
Dimensions	1.23" L x 1.32" W x 0.37" H
Function	Thermostat
Maximum Operating Temperature	42 °C
Measurement Range	42 degC
Minimum Operating Temperature	34 °C
Mounting Style	Snap Action
Mounting Type	Panel Mount
Output	NO
Sensing Mode	Close on Rise
Series
Standards	UL Listed and CSA Certified, VDE Approved
Supply Voltage	120/240 VAC
Technology	Thermal Conductive
Temperature, Close	93 F (34 C)
Temperature, Open	107 F (42 C)
Termination	QC Tabs
Thermostat Type	Disc
Type	Thermostat
Voltage, Switching	240 VAC

Adjustable Snap Disc Thermostat allows you to set the temperature setpoint to match your specific needs, simplifying inventory.

Features:

1⁄4" Quick Connect Terminals are Standard

Reduces Inventory While Providing Coverage for a Wide Range of Temperature Applications

Replaces the Majority of Fixed Disc Thermostats now on Heating Equipment and Various Appliances

2 Adjustable Fan Control Models Replace 7 Fixed Snap Disc Models

5 Adjustable Limit Control Models Replace 10 Fixed Snap Disc Models
